Our Products

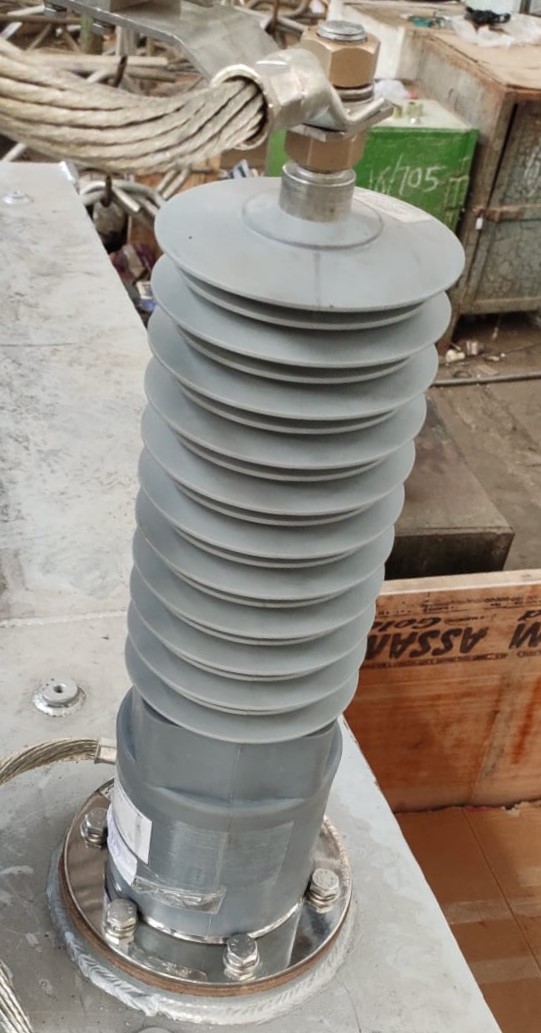

High Voltage Roof Bushing
Bushing is the device that enables safe passage of conductor current and insulates the conductor through a partition or wall, through means of attachment (flange or fixing device) to form part of the bushing.
Our bushing is ELRIM Cycloaliphatic Epoxy for roof mount application of high-speed locomotives such as WAP-7, WAG-9, WAG-9H etc.
Advantages and Technical Parameters of our bushing:
- Non tracking, self-scouring, no weathering performance.
- Superior dielectric strength, dielectric loss and power factor.
- Choice of shapes allows design innovation.
- Mechanical and thermal toughness.
- Shatter-free arc flashover performance.
- Oil resistant.
| Description | Technical Details |
|---|---|
| Rated Voltage | 35kV |
| Rated Current | 630 Amps |
| BIL | 175kV |
| Qty Supply | More than 3200 (Running Successfully) |

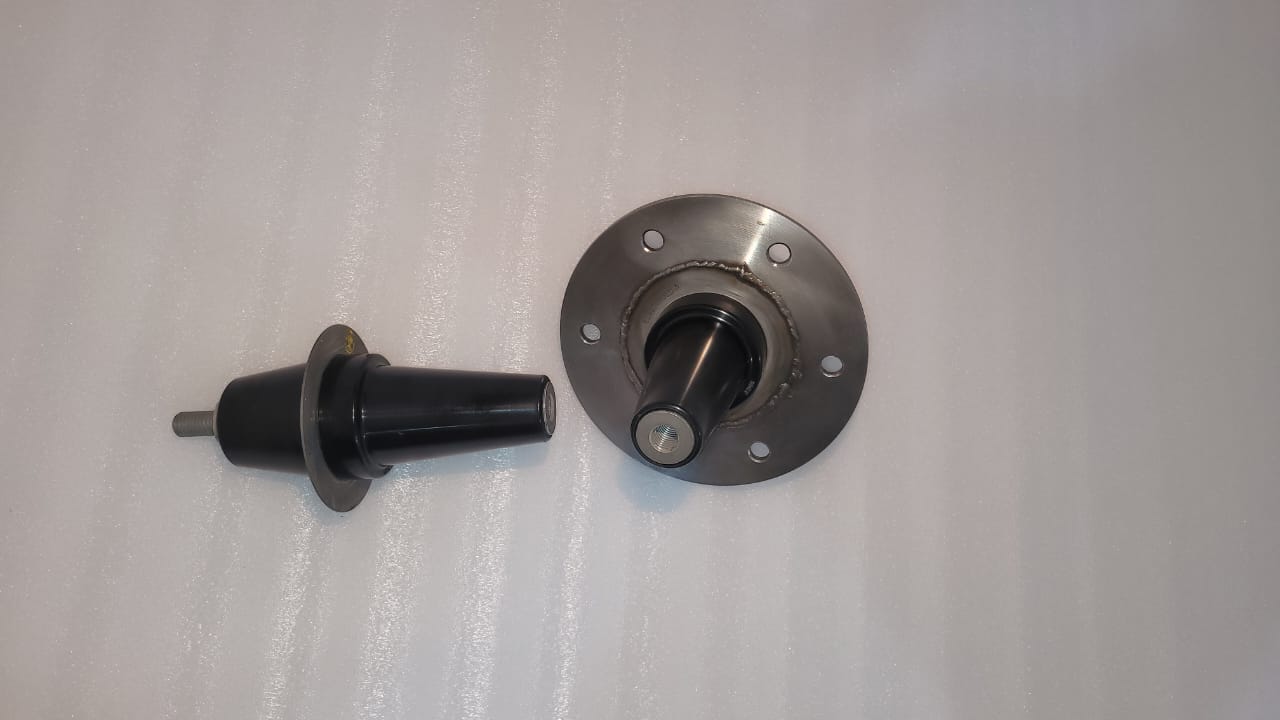

Transformer Bushing(750 s1)
The high voltage primary bushing is used to connecting the high voltage cables outside the primary leads on the inside of tank through the wall.
| Description | Technical Details |
|---|---|
| Operating Voltage | 25kV |
| Ratings | 35kV, 600 Amps. |
| Indoor | Indoor 750 s1 Type Traction Transformer Primary Bushing |
| Standard | IEEE 386 |
| Specification | CLW/ES/03/0251, Rev-1 Or Latest |
| Qty Supplied | More than 5515 Nos. |
Lightning/Surge Arrester
Lightning/Surge Arresters are used to limit the over-voltage surges on an electrical system to a known and controlled level.
The arresters are protection equipment used to protect electrical systems or apparatus against overvoltage system surges and switching surges.
We offer complete solution of arrester as per Railway requirement:
Class-3 station class 42kV gapless lightning arrester
Class-4 station class 42kV gapless lightning arrester.
As per CLW Specification CLW/ES/3/0016 B or latest, CLW/ES/3/0663 or latest and RDSO Specification RDSO/2009/EL/SPEC/XXXX Rev.0.
| Description | Technical Details |
|---|---|
| Qty Supplied | More than 1500 (Running Successfully) |
Motor Termination Kit
The Motor Termination kit consists of multiple components such as terminal bushings, adaptors, plugs etc., to terminate the high voltage motors of 6.6kV, 11kV and 24kV with cables.
The terminal box of high voltage motors is connected with the terminal bushings as per the insulation system such as in air, SF6 or oil. Along with bushings, other components are used to terminate the cable at the bushing terminal.
| Description | Technical Details |
|---|---|
| Operating Voltage | 25kV |
| Indoor | Connectors as per IEEE-386 Make – Electranex |
| Specification | IEEE-386 Standards |
| Qty Supplied | More than 9700 Nos. |

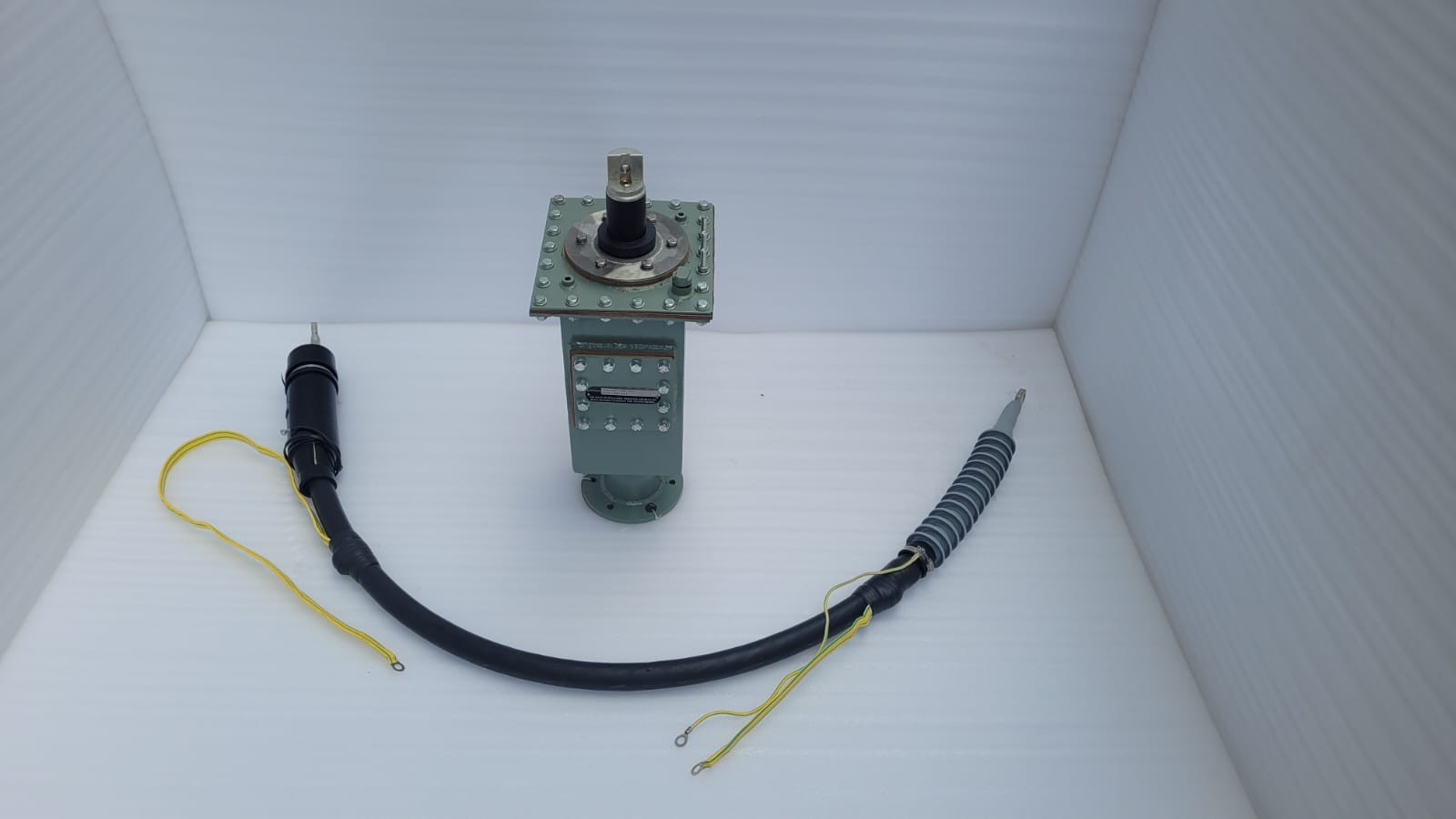

Cable Head Termination System
The cable head termination system is a specialized termination application designed to safely transmit the power from OHE roof of high-speed locomotives, EMUs/MEMUs/Electric Train Set to the traction vehicle ‘s transformer.
The power is transmitted through the outdoor-indoor cable termination system design and laid between the roof system and primary transformer of the traction vehicle.
Our termination system consists of IEC-60840 standard conformed 26/45 (52kV) XLPE, HEPR Cable of different size and international standard outdoor (IEEE Standard 48-1975, IEC 540, VDE 0278) and indoor connectors (IEEE 386).
The whole assembly is supplied ready to install.
| Description | Technical Details |
|---|---|
| Qty Supplied | More than 5600 (Running Successfully) |
